Manufacturing
Cutting
LASER CUTTING
Laser tech CO2 (3x)
Cap 4 Kwatt
3000x1650mm
Steel: up to 20mm
Stainless Steel: up to 15mm
Alu alloys: up to 10mm
LVD and TRUMPF
PUNCHING
CNC Punching press (3x)
Capacity 20 Tonnes
60x Tool stations
Up to 3000x1650mm
Max thickness Mild steel 6mm
TRUMPF and SALVAGNINI
DEBURRING BRUSHING
Vertical Brushing (3x)
Horizontal Brushing (2x)
Multi-metal: Steel, Alu Alloys,
Separate machine for Stainless
Steel applications
VG MACHINES
Bending

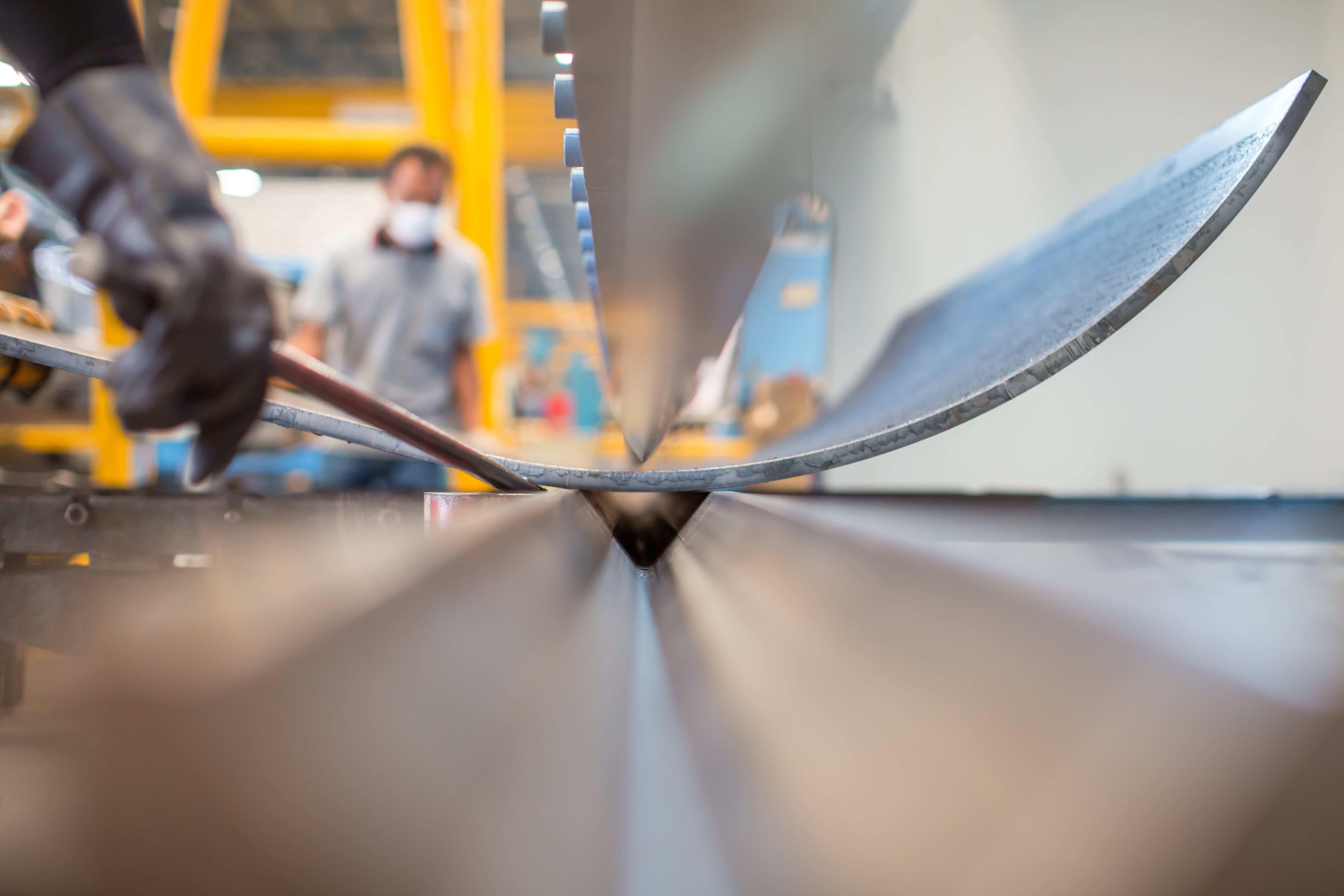

PRESS BRAKES
CNC Hydraulic Press-brake (10x)
Capacity: 270 Tonnes
Up to 4000mm
Up to 7 CNC axes
Thickness from 0.2mm to 15mm
LVD

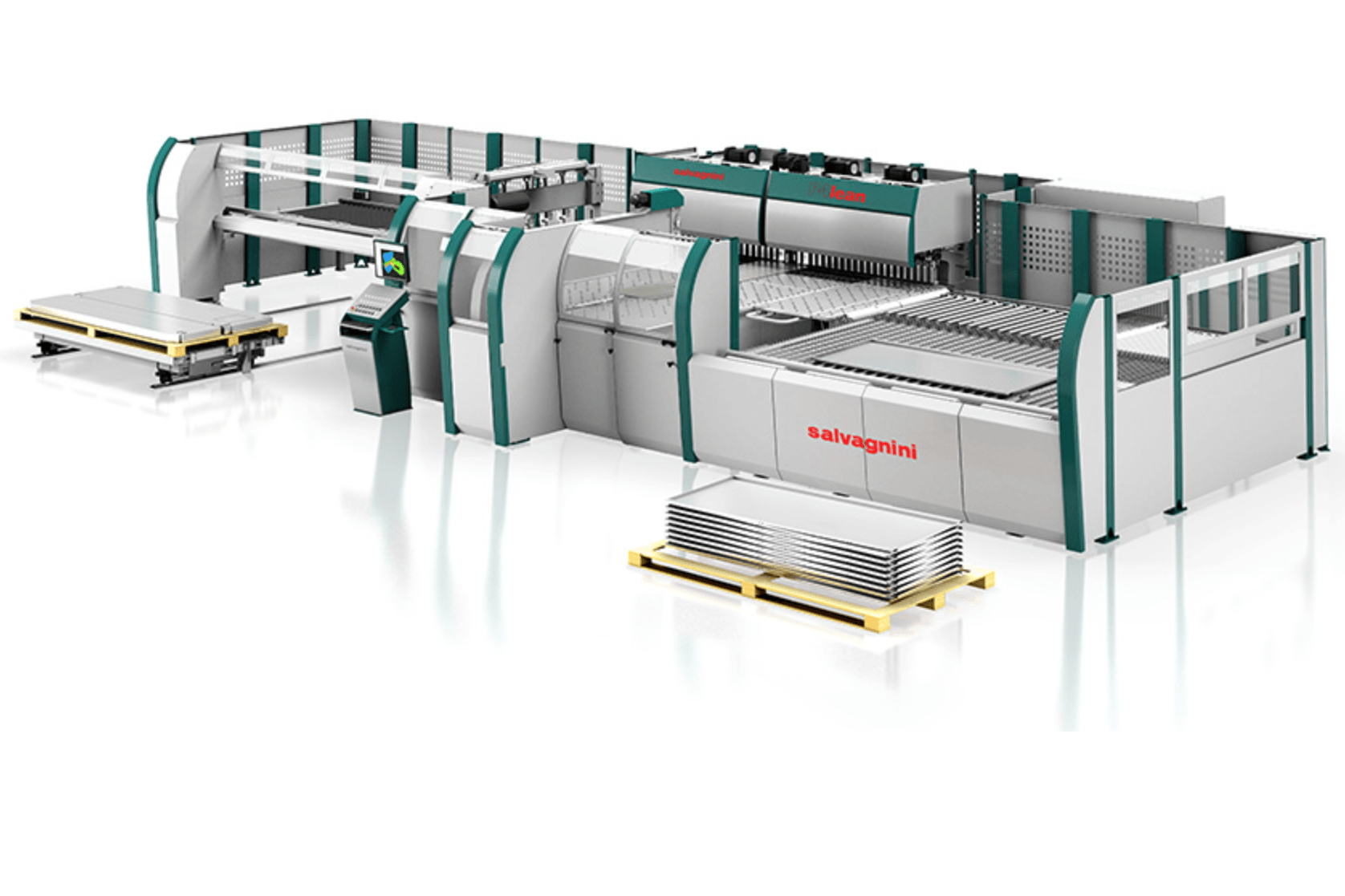

PANEL BENDING
Automated Panel Bending
from 300x250mm to 2500x1500mm
up to 3 mm thickness
SALVAGNINI

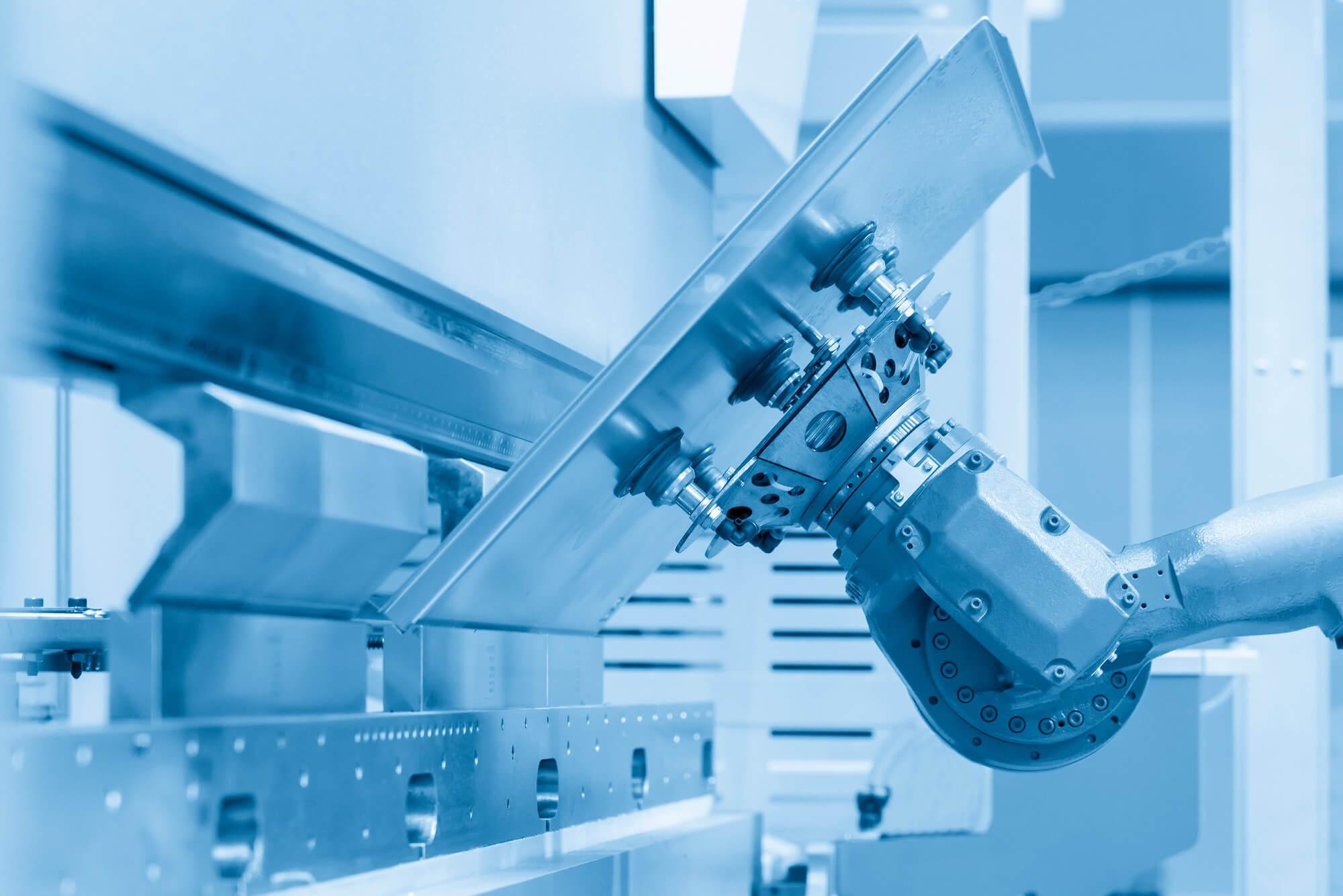

ROBOT PRESS BRAKE
Robot up to 150kg
Press Brake 5m - 170 Tons
Complex or Big Sized part

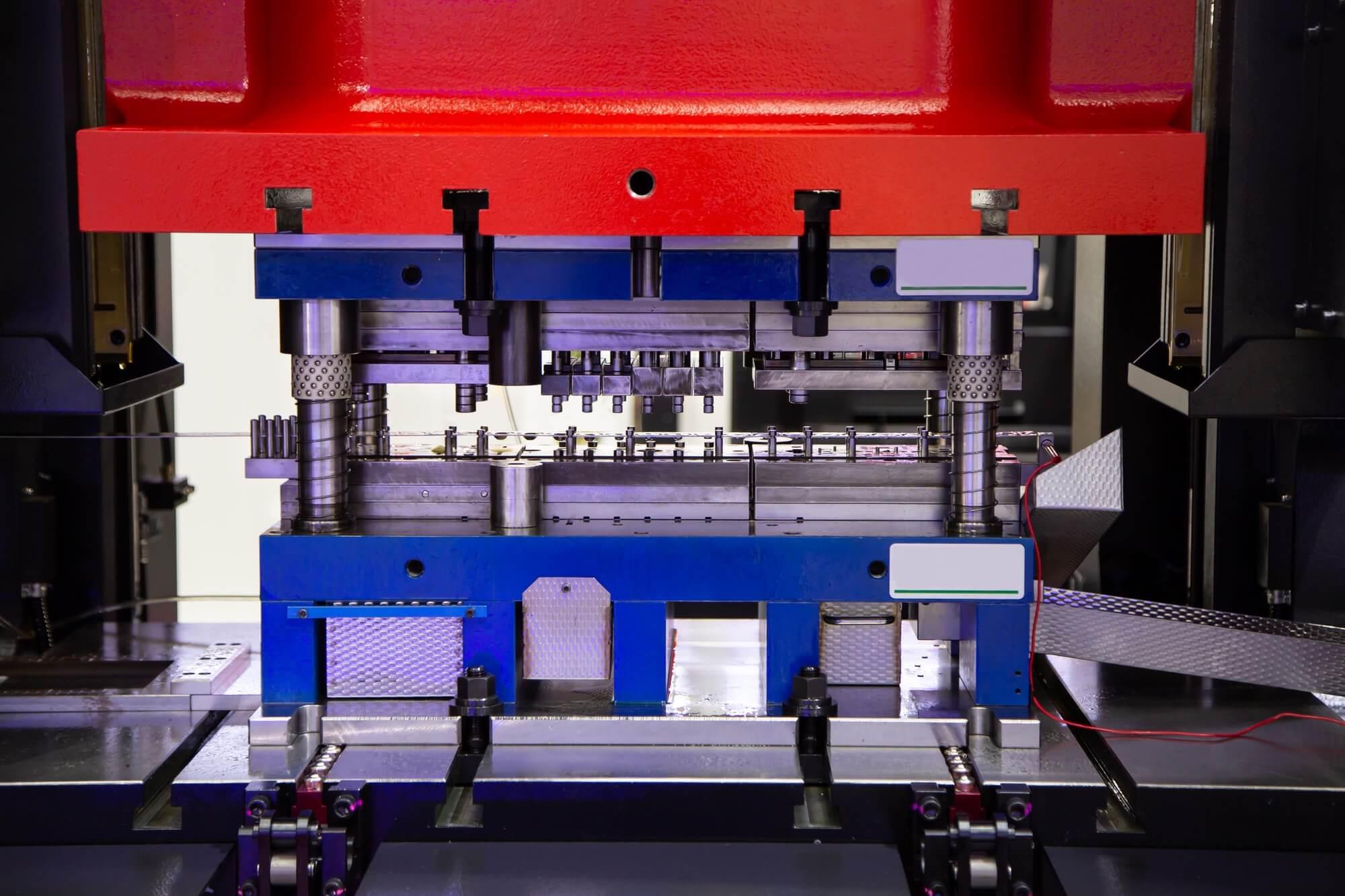

DEEP DRAWING
Upper Ram: Tonnage: 300 Tonnes
Double-action press Lower side
Blankholder: 120 Ton

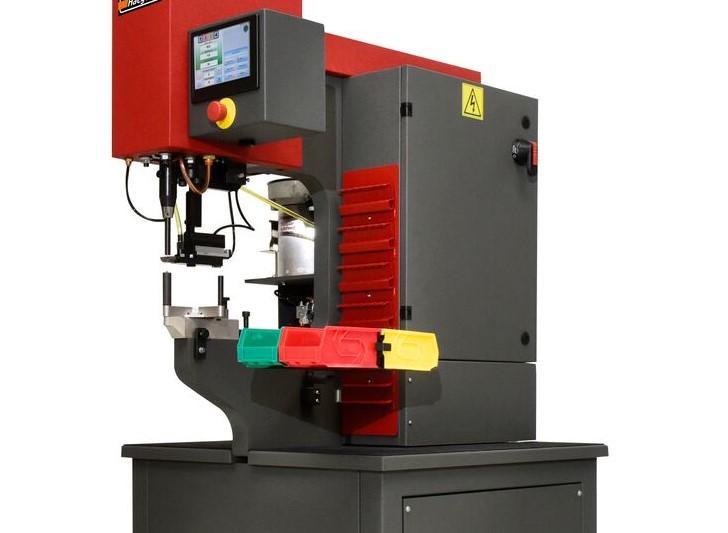

INSERTS
Fastener inserts (3x)
Nuts and screws
M2-M12
Pneumatic-Hydraulic Inserting
Tool change

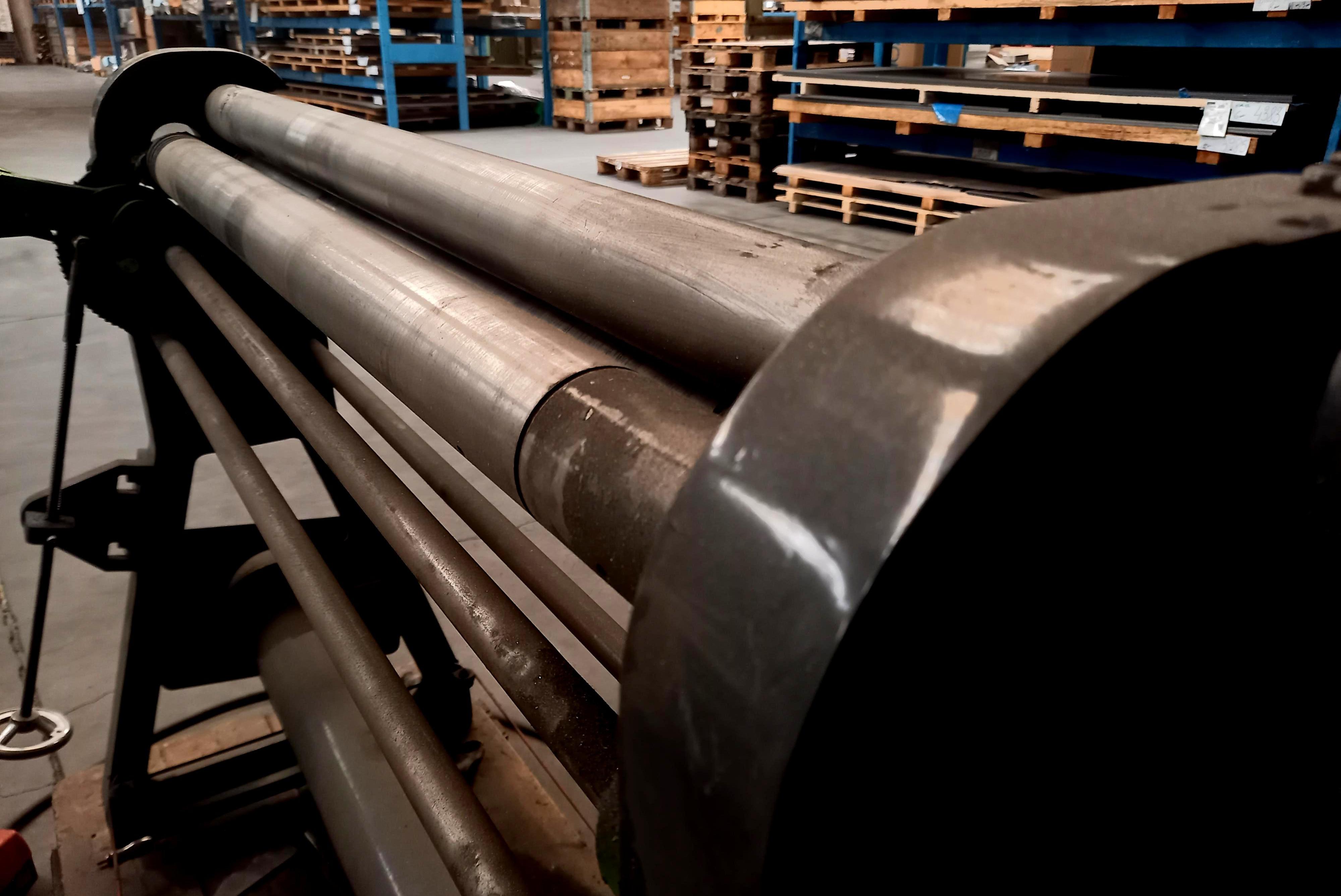

ROLLING
roll bending with special tools
roll bending machines (2x)

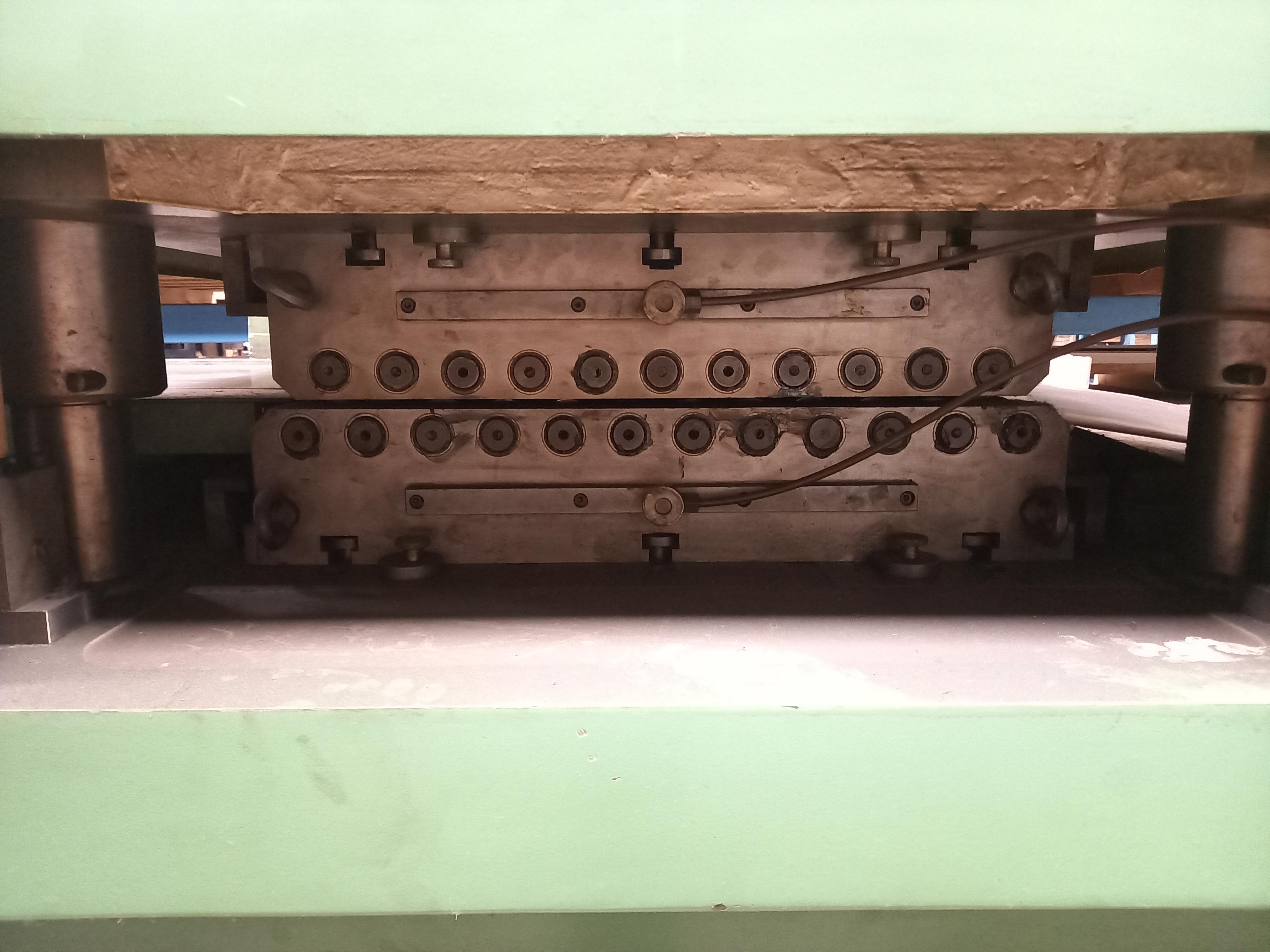

STRETCHING FLATTENING
23 rolls
3 mm thickness
600 mm width
SHUBERT
Welding
WELDING
Semi-Auto Mig
350 amp+water cooling
Tig
250 amp+pulse mode + balancing
Steel alloys
Alu alloys
Stainless Steel alloys
ROBOTIC WELDING
1 completely robotised cell,
MIG/MAG
3 stations 2 of which CNC index
PANASONIC VALKWELDING
SPOT WELDING
MANUAL AND ROBOTIC
50 KVA 75KVA & 125KVA
Steel up to 5+5mm
Alu up to 2+2mm
Stainless Steel up to 4+4mm
ABB and ARO
Painting
POWDER COATINGS
Manual and Automatic
Curing oven 45 mtr at max 250°C
Part Dimensions:
3300 x 1000 x 1500 h & 150 kg
PRETREATMENT
Multiple degreasing
Desoxydation-pickling
Zinc Phosphate conversionlayer
Rinsing with demi-water
Multi-metal treatment
(steel, Zincor, galvanised steel, stainless, alu alloys)
Dimensions of the tanks
3500 x 1300 x 1500 mm
Assembly
SINGLE PARTS
we assemble single parts in pre assembly
-rubbers
-locks
-isolations
-small electronics
-rivets, blind rivet nuts

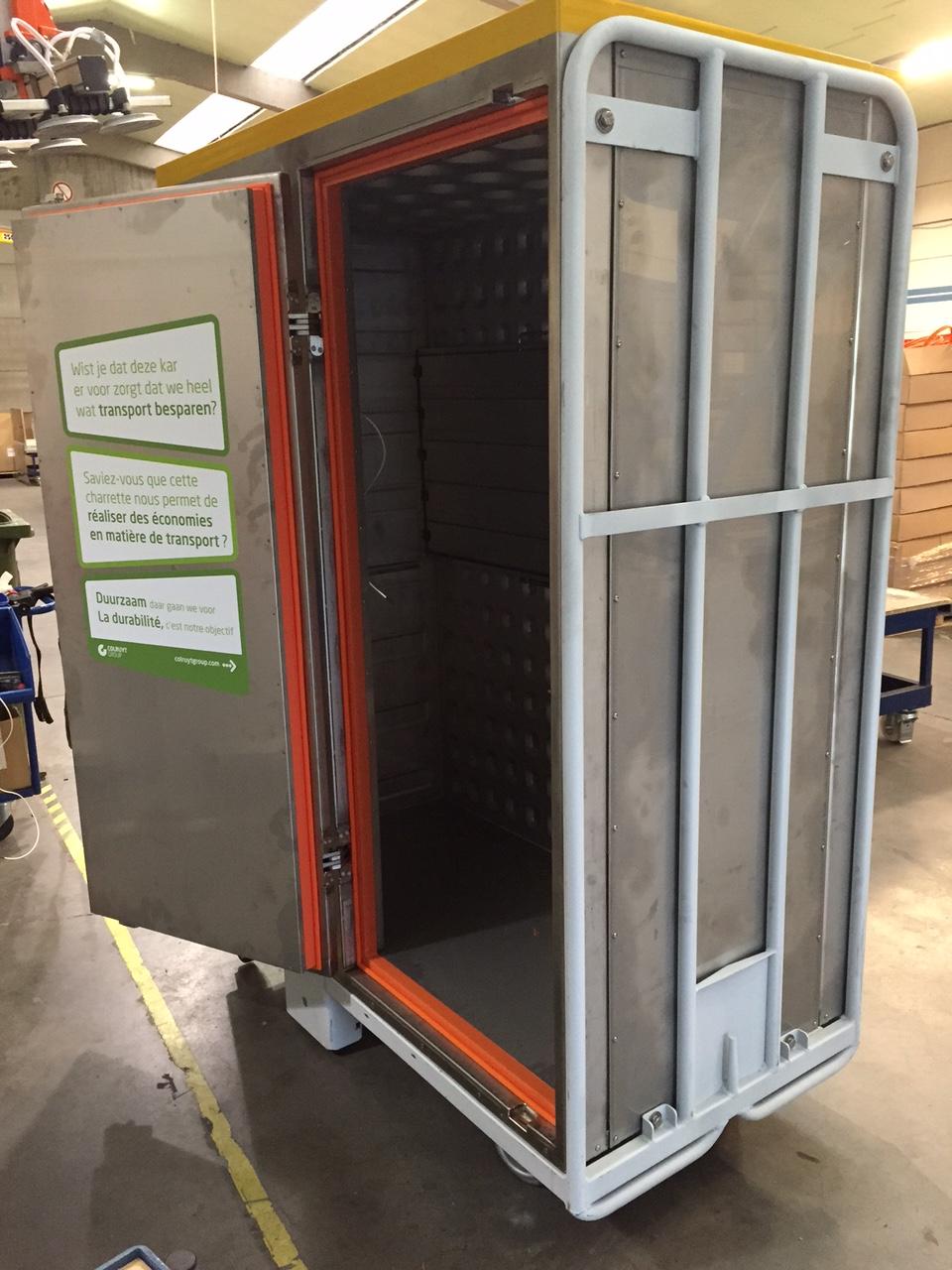

FULL ASSEMBLIES
making subassemblies and assemble them to full end products
prepare packaging so it can go directly to endcustomers
even if requested without passing through our customer
